VSB COMPRESSED AIR BABY OIL TORCH BURNER

Call our Experts

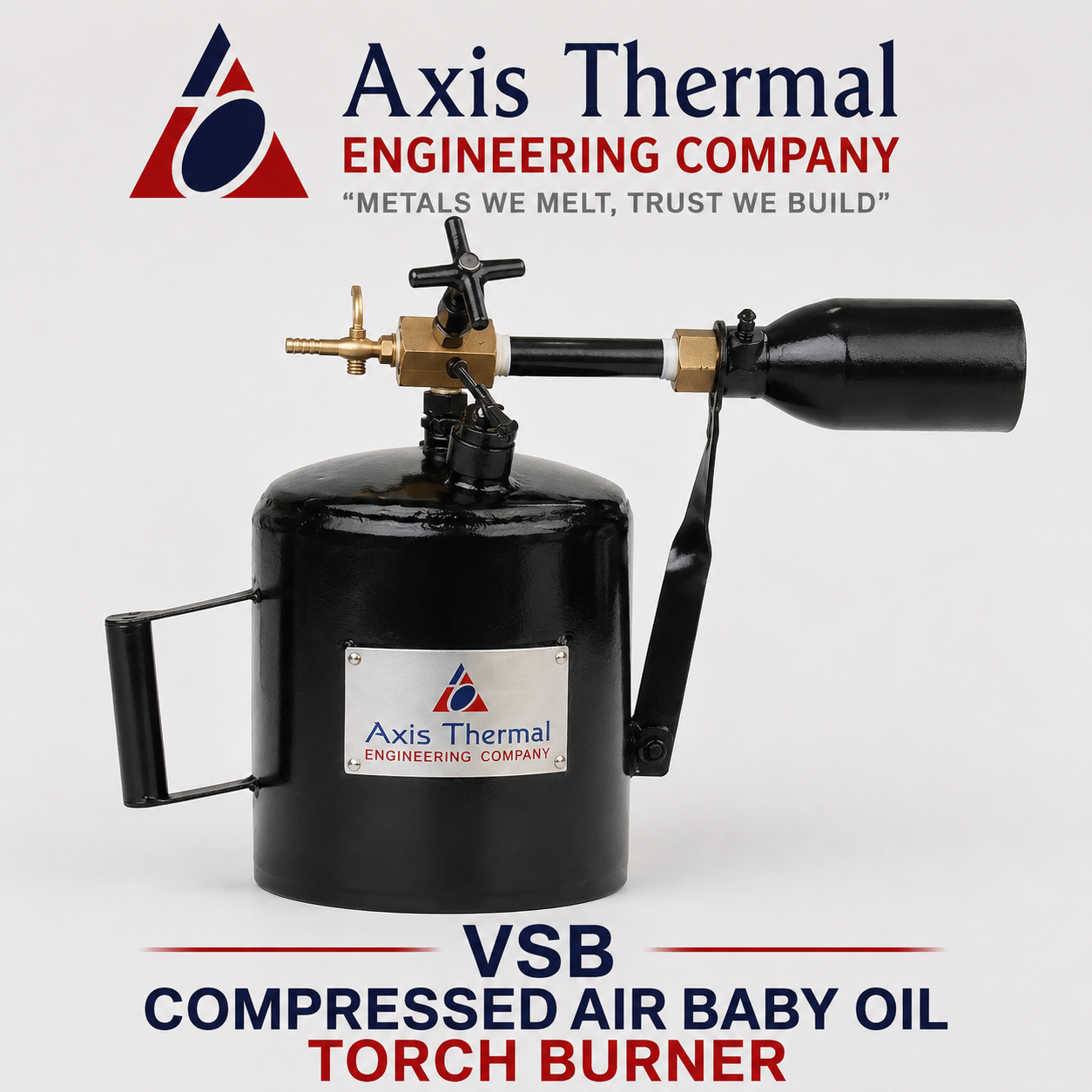

VSB Compressed Air Baby Oil Torch Burner

Construction

The VSB Compressed Air Baby Oil Torch is an easy to carry lightweight unit. The burner is fitted with a one gallon oil tank and filling cap. Oil can be refilled while the burner is in operation. An air inlet union is also provided to connect to a compressed air line. A combination air-oil valve with two hand wheels allows separate regulation of air and oil. An insulated grip handle enables the operator to direct the flame in any direction without discomfort.

Applications

The VSB Compressed Air Baby Oil Torch is a versatile and handy unit for large and small engineering workshops and foundries requiring regular or occasional heating at site either for repairs or for production work. Some of the many applications are listed below.

  • Brazing
  • Soldering
  • Pre heating for welding
  • Pipe heating for bending
  • Heating rivets
  • Loosening tight couplings
  • Making shrink fits
  • Ladle heating
  • Tempering
  • Lighting cupolas
  • Lighting up burners
  • Skin drying of moulds
  • Melting lead and babbit
  • Straightening steel members
  • Melting bituminous compounds

VSB COMPRESSED AIR PORTABLE OIL BURNER

Call our Experts

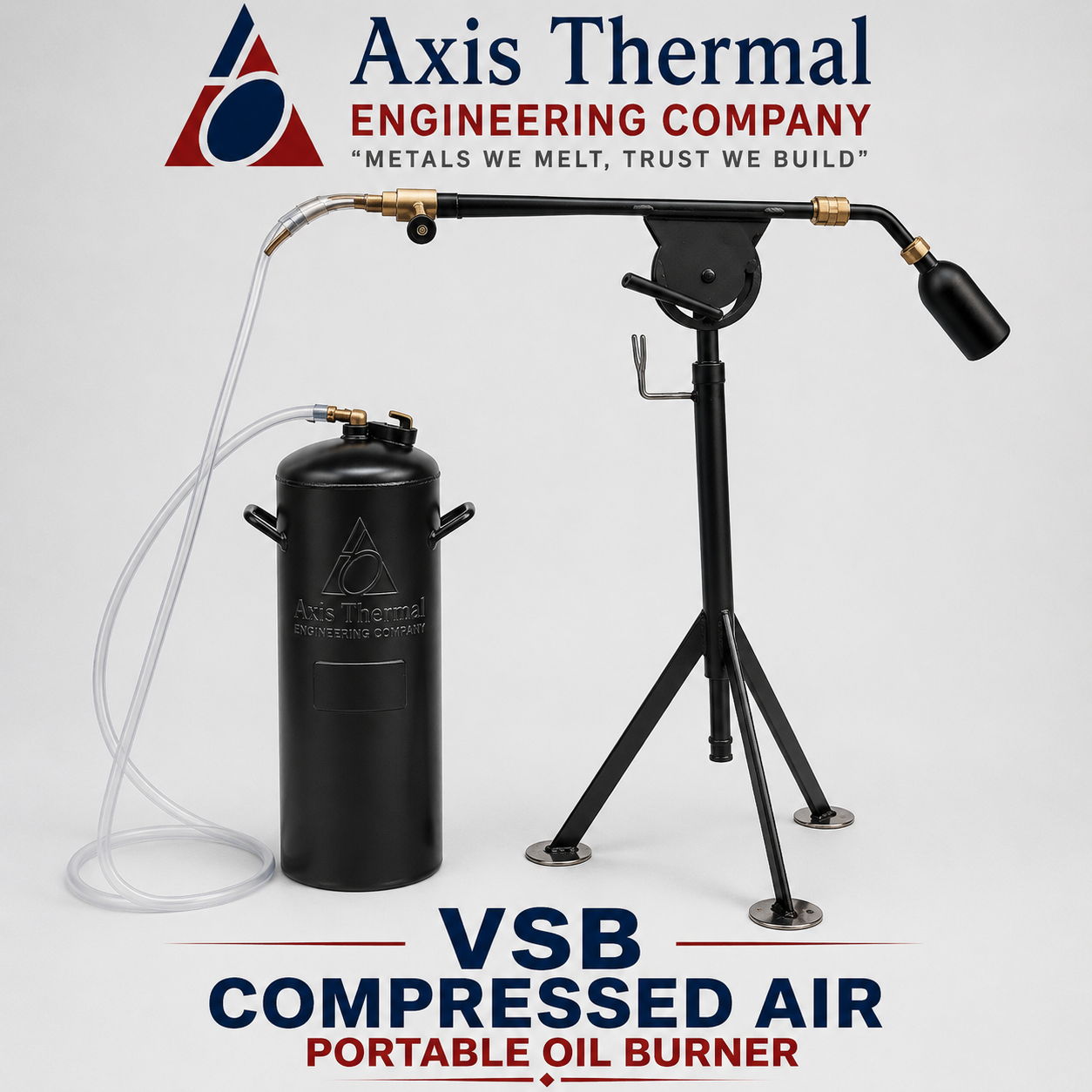

VSB Compressed Air Portable Oil Burner

Principle

The VSB compressed air portable oil burner operates on the principle of venturi suction. Compressed air at between 50 to 100 psi is used to create the suction for oil to flow into the burner from the portable tank and also to atomize the oil. No direct air pressure is applied to the oil in the tank, and therefore no initial or periodic pressure testing of the tank is required.

Components

The VS burner consist of:

  • Mobile 15 gallon oil tank burner lance
  • Detachable cast iron nozzle
  • Air and oil hoses
  • Pressure gauge
  • Air and oil control valves
  • Air and oil shutoff valves

Applications

The VS burner is a highly versatile portable unit suitable for a large variety of heating operations. Some of its many applications include:

  • Rapid and intense heating of MS parts to be bend straighten, expand or anneal components of railway wagons or boilers railway wagons or boilers
  • Lighting cupolas
  • Preheating large ladles
  • Skin drying of large moulds
  • General heating and repair work

Starting and Operation

Before starting up the burner, close the oil and air regulating valves and also the air shutoff valve near the pressure gauge. Prepare a lighting-up torch by winding oil-soaked cotton waste around a rod. Place the lighted torch near the mouth of the burner, and open the air shutoff valve first. Next gradually open the air control valve followed by the oil control valve till the oil ignites. By controlling the oil and air regulating valves the flame can be varied from a soft luminous low-temperature flame to one with a temperature as high as 1150°C suitable for rapid intense local heating. For intense heating, the flame becomes highly powerful 5 to 10 minutes after ignition due to heating up of the nozzle. The flame can be easily adjusted for length and intensity to suit the work in hand.
