Electric Furnaces

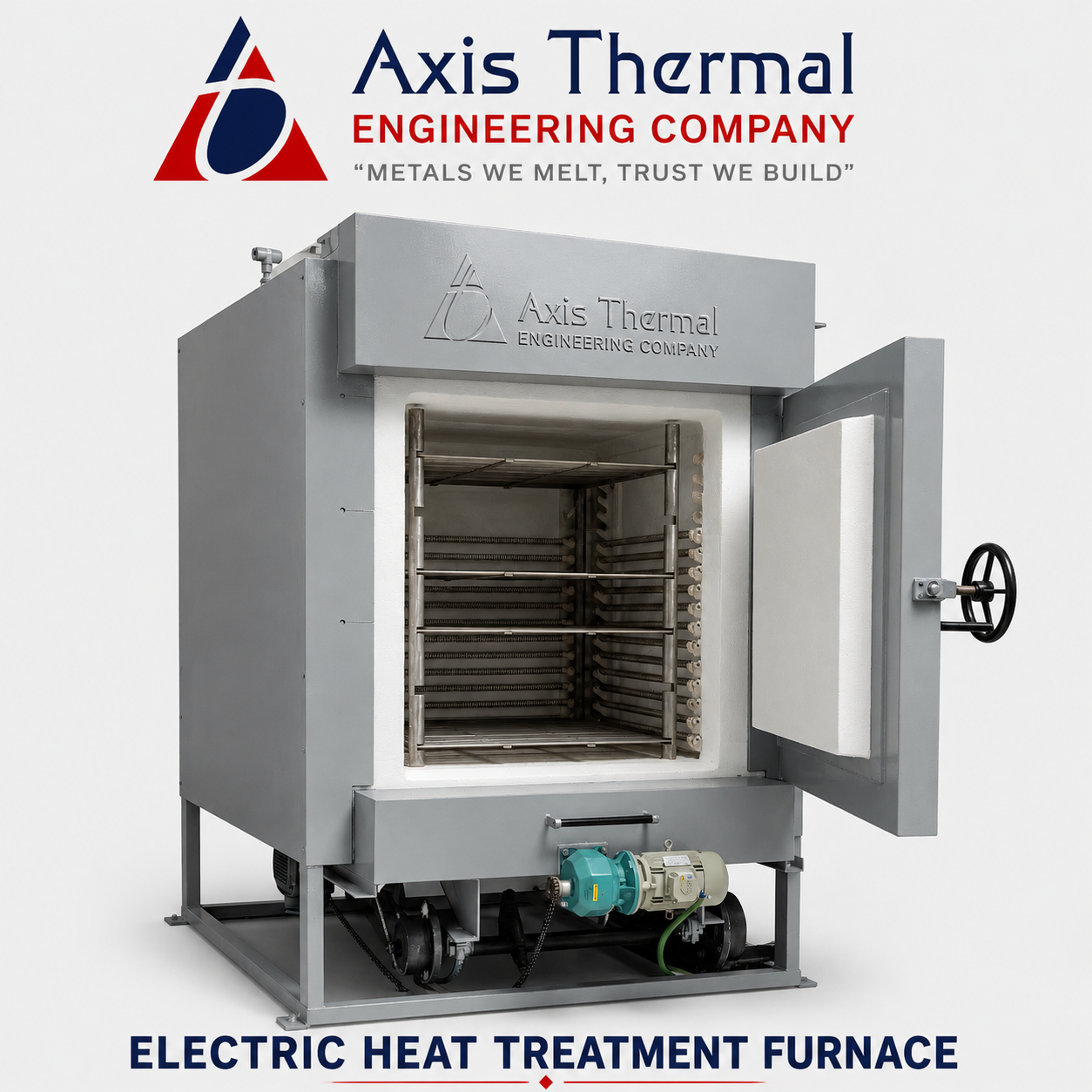

Axis Heat Treatment Furnaces are used for treatment of metals for further processing of materials. The treatment of the metal ensures the change in grain structure of the material treated. The treatment applications are ageing, anodizing, annealing, tempering, normalizing etc.

The furnace is constructed from reinforced mild steel plates of substantial thickness and is supported on a heavy fabricated structure. Depending on the size and capacity of the furnace, the drive mechanism will be either, geared motor drive, hydraulic drive and chain pulley drive.

In addition to the fuel fired furnace, the important system required is “Combustion System”. The basic function of the combustion system apart from heat generation is heat re-circulation and better heat conversion by means of conduction, convection and radiation.

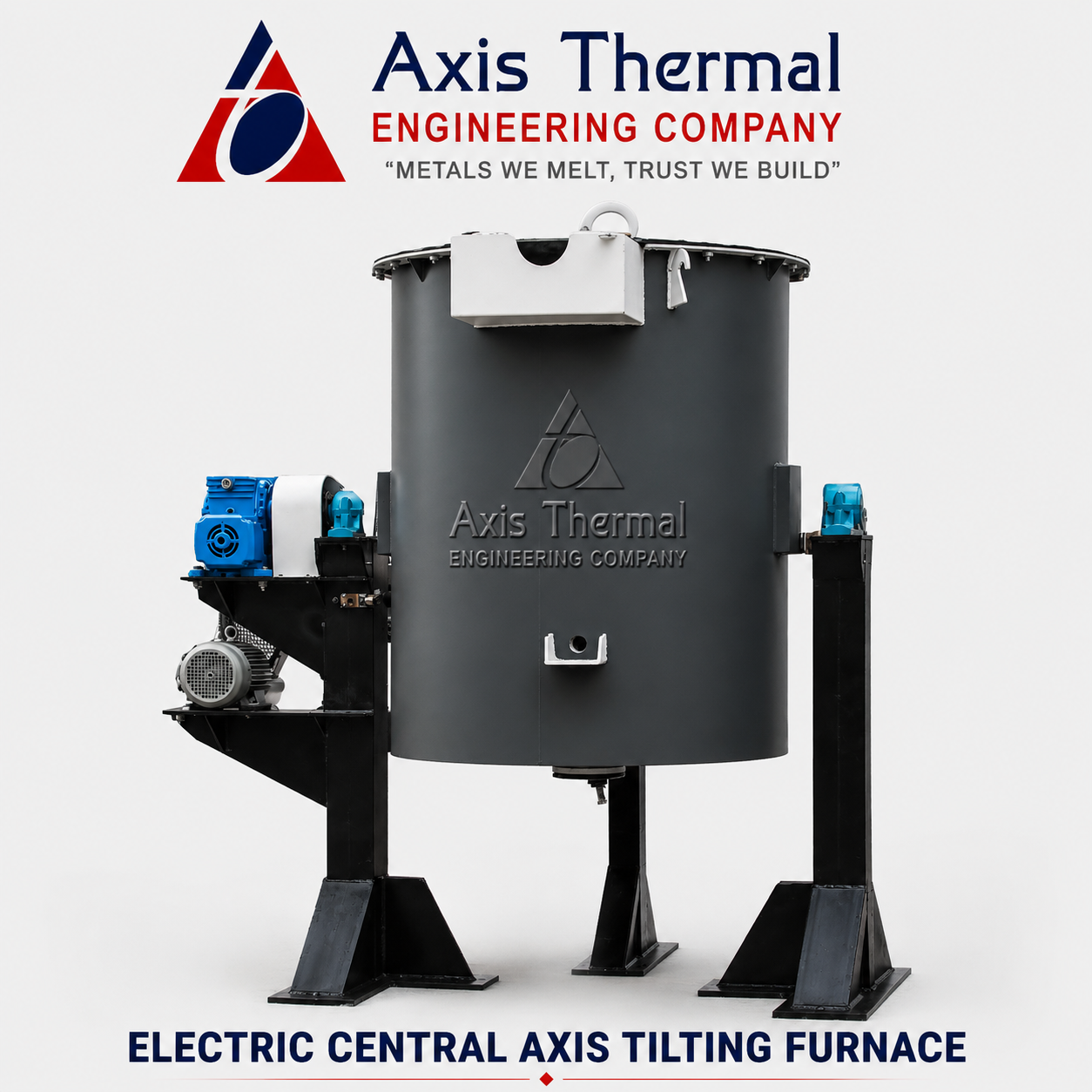

CENTRAL AXIS TILTING FURNACES are supplied as complete refractory line packages with blower, burner and crucible. The durable body is constructed from thick reinforced steel plates and supported on a stand by turnnions which move on anti-friction bearings. A graphite crucible and stand are providing, along with the muffle ring and cover for top of the crucible. Depending on the size and client’s option.

A side mounted tilting gear arrangement with a large hand wheel allows easy manual operation. Motorized & hydraulic tilting with inching facility available.

The furnace is fitted with Axis self proportionating Oil/Gas burner. Preheated oil at content pressures is supplied by a Axis pumping and heating system. Combustion air will be supplied by Axis centrifugal air blower to burner.

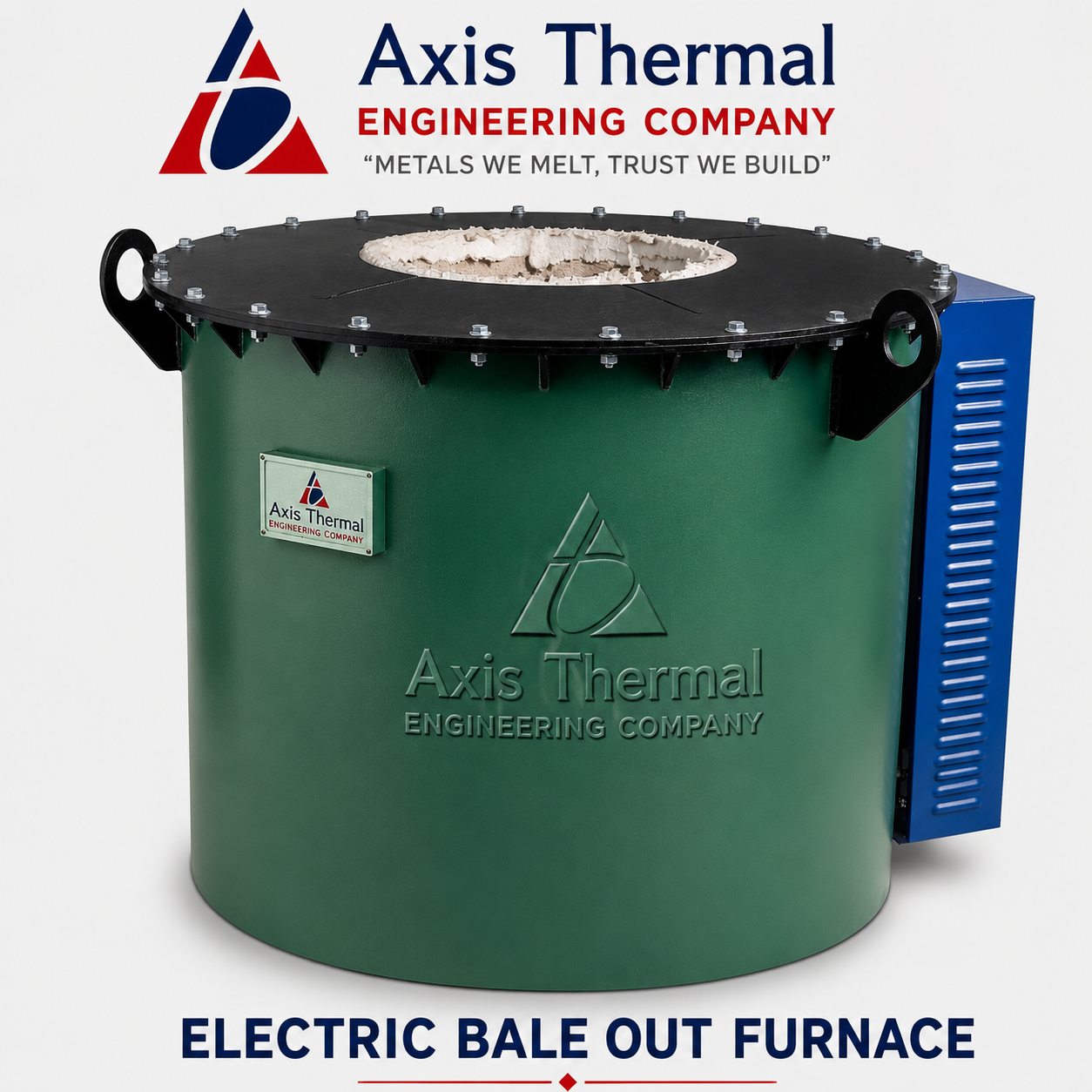

AXIS BALE OUT FURNACES FOR ALUMINIUM, BRASS & GUN METALS are efficient and complete melting and holding units. The furnace is refractory lined and supplied as a complete package which includes blower, burner and crucible. The durable body is constructed from thick reinforced mild steel plates. The crucible is available in options of either cast Iron, graphite or, silicon carbide crucibles.

The Furnace is supplied with a Axis self proportionating burner/Compact type burner/ Conventional type burner for all fuels can be supplied.

Combustion air will be passed by Axis centrifugal air blower either direct or through recuperator. Preheated oil will be supplied to the burner at a constant pressure to the burner from Axis Pumping and Heating unit.
